Drum heaters

Do podgrzewania i stabilizacji temperatury cieczy przemysłowych w beczkach, wiadrach, butlach i zbiornikach - projektowane pod rodzaj medium, wymaganą temperaturę, pojemność oraz sposób pracy. Pomagają utrzymać właściwą lepkość, ograniczyć straty ciepła i poprawić efektywność procesu.

Ask about the product

Choose a heater for your device!

Drum heaters (heating jackets) are designed to maintain target temperature or viscosity of industrial liquids. Our electric drum and bottle heaters can work as stand‑alone units or as part of chamber/oven systems. Proper insulation minimizes heat loss and reduces energy use compared to conventional band heaters.

They stabilize temperature for substances such as fats, oils, resins and other process liquids that require viscosity control. Versions with temperature control are available, including models for hazardous areas conforming to ATEX requirements.

Spas dikim! Your submission has been received!

Oops! Qualcosa ha incontro il modulo.

Basic technical parameters

Power max

Voltage

Working Temp.

Dimensions

Lenght

Width

Heater cross section:

Rectangular

Round

Thickness

PTFE‑polyester outer jacket
Polyester fiber isolering
Resistance wire with silicone spiral insulation
Quick‑adjust buckles
3‑metre power cable
Standard sizes: 25L, 50L, 105L, 200L
Thermostat ranges: 0—40°C or 0—90°C
Typical heat‑up: ~48 h (200 L water from +15°C to +60°C with 450 W drum heater)
Optional drum base heater
IP40 beskyttelse

Trzy typy ogrzewaczy

Cecha / Model	Standardowy ogrzewacz do beczek (0–90°C)	Wysokotemperaturowy ogrzewacz do beczek (0–200°C)	Ogrzewacz do beczek dla przemysłu spożywczego (0–120°C)
Zakres temperatury	0–90°C (32–194°F)	0–200°C (32–392°F)	0–120°C (32–248°F)
Regulator	Cyfrowy regulator 0–90°C	Cyfrowy regulator 0–200°C	Cyfrowy regulator (lub regulatory) 0–120°C
Zastosowanie	Ogólne	Wysokotemperaturowe procesy	Przemysł spożywczy i farmaceutyczny
Zewnętrzna powłoka	Cordura pokryta teflonem	Włókno szklane impregnowane silikonem	Włókno szklane impregnowane silikonem (materiał z atestem FDA)
Wewnętrzna warstwa	Włókno szklane impregnowane silikonem	—	Jak w wersji HT (jak w modelu wysokotemperaturowym)
Izolacja	8 mm poliester	6 mm włókno szklane	Jak w wersji HT
Element grzewczy	Przewód z izolacją teflonową	Przewód z izolacją teflonową	Przewód z izolacją teflonową
Bezpiecznik termiczny	172°C	257°C	—
Klamry	Regulowane, szybkozdejmowalne	Regulowane, szybkozdejmowalne	Regulowane, szybkozdejmowalne
Przewód zasilający	3 m (10 stóp) z wtykiem Schuko lub US	3 m (10 stóp) z wtykiem Schuko lub US	3 m (10 stóp) z wtykiem Schuko lub US
Klasa ochrony	IP40 (opcjonalnie sterownik IP54)	IP40 (opcjonalnie sterownik IP54)	IP40 (sterownik IP54)
Pokrywa górna	Sprzedawana osobno (czarna, do beczki 200L: 15-1921)	Sprzedawana osobno (srebrna, do beczki 200L: 15-1921A)	Sprzedawana osobno (biała, do beczki 200L: 15-1921F)
Zasilanie / Moc	110V 1200W: 11-9858A 230V 1200W: 11-9858	110V 1200W: 11-9870A 230V 1200W: 11-9870	1 strefa – 230V 1200W: 19-2746 2 strefy – 230V 2×600W: 12-1208DT

*Requires consultation with our technical department.

Potrzebujesz grzałki do konkretnego zastosowania?

Fill out the form — this is the fastest and safest way to contact.

‍Don't worry — your form won't disappear in a vacuum.
Fill in a few fields and your message will go directly to our team. You'll get an email confirmation right away, so you don't have to worry about missing something.

Jak wygląda proces po wysłaniu zapytania?

1. Otrzymujemy Twoje zapytanie i przekazujemy je do specjalisty
2. Analizujemy wymagania (moc, wymiary, zastosowanie)
3. Wracamy z propozycją rozwiązania i wyceną

👉 Odpowiadamy zazwyczaj w ciągu 24 godz. roboczych

Oops! Qualcosa ha incontro il modulo.

Industries

Food industry

Plastics industry

Chemical industry

Cosmetic industry

Pharmacology/Pharmaceutical industry

Automotive industry

Construction

Energy and power plants/Power industry

Rubber Products Industry/Rubber Industry

Industrial Warehouses and Cold Stories/Warehouses and Logistics

Shipbuilding and offshore industry/Shipbuilding

Metallurgical and metalworking

Specification

Application

Food industry – heating honey for easy dispensing, heating barrels of chocolate and creams, maintaining fluidity of edible oils, heating syrups and sauces before dosing.

Plastics industry – heating barrels with liquid granulate (resins, liquid polymers), stabilizing viscosity of hot-melt adhesives, maintaining temperature of raw materials for injection molding machines and extruders.

Chemical industry – heating barrels with acids, bases, and solvents sensitive to low temperatures, maintaining viscosity of lubricants and technical oils, heating industrial resins and adhesives.

Cosmetic industry – heating barrels with cream, gel, and lotion bases, maintaining temperature of cosmetic oils and waxes, facilitating dosing of cosmetic masses into production lines.

Pharmacology/Pharmaceutical industry – maintaining fluidity of liquid and semi-liquid ingredients, heating barrels with active substances and syrups, controlling temperature of solvents sensitive to crystallization.

Paint and varnish industry – heating barrels with paints, varnishes, and thinners, maintaining appropriate viscosity of liquid powder coatings, preparing adhesives and resins for spray application.

Rubber Products Industry/Rubber Industry – heating barrels with rubber adhesive mixtures, stabilizing temperature of latexes and rubbers, maintaining viscosity of vulcanization compounds.

Industrial Warehouses and Cold Stories/Warehouses and Logistics – preventing crystallization of cold-sensitive products (oils, syrups, lubricants), facilitating dosing of liquids at low temperatures, heating barrels during transport or storage in unheated halls.

Construction – heating barrels with bitumens, construction adhesives, and sealing compounds, maintaining fluidity of resins for flooring, heating protective coatings used on-site.

Automotive industry – heating barrels with oils and lubricants, heating adhesives and sealants used in assembly, maintaining viscosity of anti-corrosion coatings and automotive paints.

Energy and power plants/Power industry – heating barrels with lubricating oils, fuel additives, maintaining temperature of high-viscosity lubricants in turbines and generators.

Shipbuilding and offshore industry/Shipbuilding – heating barrels with marine oils, lubricants for deck mechanisms, heating anti-corrosion coatings and adhesives used on offshore platforms.

Recycling industry (proposed) – heating barrels with waste oils before further processing, heating resins and adhesives for secondary bonding of raw materials, stabilizing temperature of recovered waxes and paraffins.

Metallurgical and metalworking – heating barrels with quenching oils, lubricating emulsions and coolants, heating oil baths used in heat treatment.

Reinforcement industry – heating barrels with specialized lubricants, research fuels, composite resins used in armament.

Heater Construction

Types of heaters

Current Outputs

Heating Zones

Types of heaters

Rodzaje ogrzewaczy	Symbol	Beczka	Rozmiar [długość-szerokość]/średnica	Dane znamionowe
Ogrzewacze beczek 0-40°C lub 0-90°C	11-9858	200L	1990-800mm	230V 1200W
	11-9858A	200L	1990-800mm	110V 1200W
	11-9859	200L	1990-450mm	230V 530W
	11-9859A	200L	1990-450mm	110V 530W

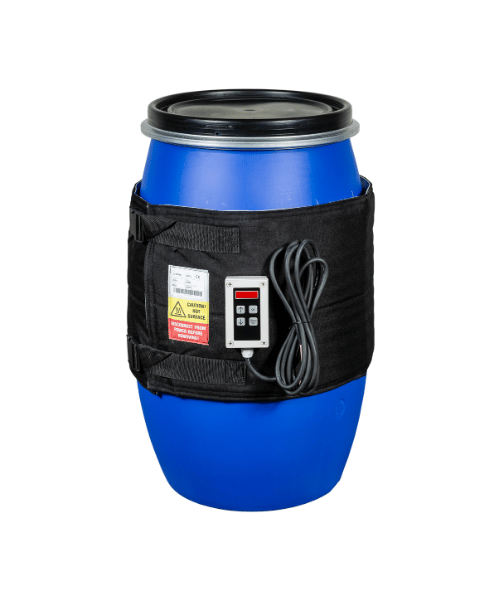

	11-9856B	105L	1650-370mm	230V 400W
	11-9857	50–60L	1330-460mm	230V 300W
	11-9857A	50–60L	1330-460mm	110V 300W
	11-9856	25–30L	1200-400mm	230V 225W
	11-9856A	25–30L	1200-400mm	110V 240W
Ogrzewacze beczek wysokotemperaturowe 0–200ºC	11-9870	200L	1990-800mm	230V 1200W
	11-9870B	200L	1990-800mm	230V 1500W
	11-9873	105L	1650-370mm	230V 700W
	11-9871	50L	1330-460mm	230V 440W
	11-9872	25L	1200-400mm	230V 380W
Płaszcz izolacyjny	11-9862	200L	-	-
Ogrzewacze zbiorników IBC	11-9860	IBC	4400-1000mm	230V 2x1000W
	11-9861	IBC	4400-1000mm	110V 2x1000W
	11-9861B	IBC	4400-1000mm	230V 3x1000W
	11-9860A	IBC	4400-1000mm	230V 1300W
	11-9861A	IBC	4400-1000mm	110V 1300W
	11-9861D	IBC	Pokrywa izolacyjna z otwarciem
	11-9861E	IBC	Wodoodporna pokrywa zbiornika
Ogrzewacze dna beczek	11-9868	200L	Ø 550mm	230V 900W
	12-1170	200L	Ø 550mm	230V 1800W
Silikonowe opaski grzewcze do beczek 0–120ºC	11-9866	105L	1300-115mm	230V 800W
	11-9867	200L	1700-115mm	230V 1000W
	11-9667A	200L	1700-180mm	230V 1500W
	11-9667B	200L	1700-180mm	230V 1000W
	11-9864	25L	800-115mm	230V 300W
	11-9865	50L	950-115mm	230V 500W

Visualization of the construction of the heater
