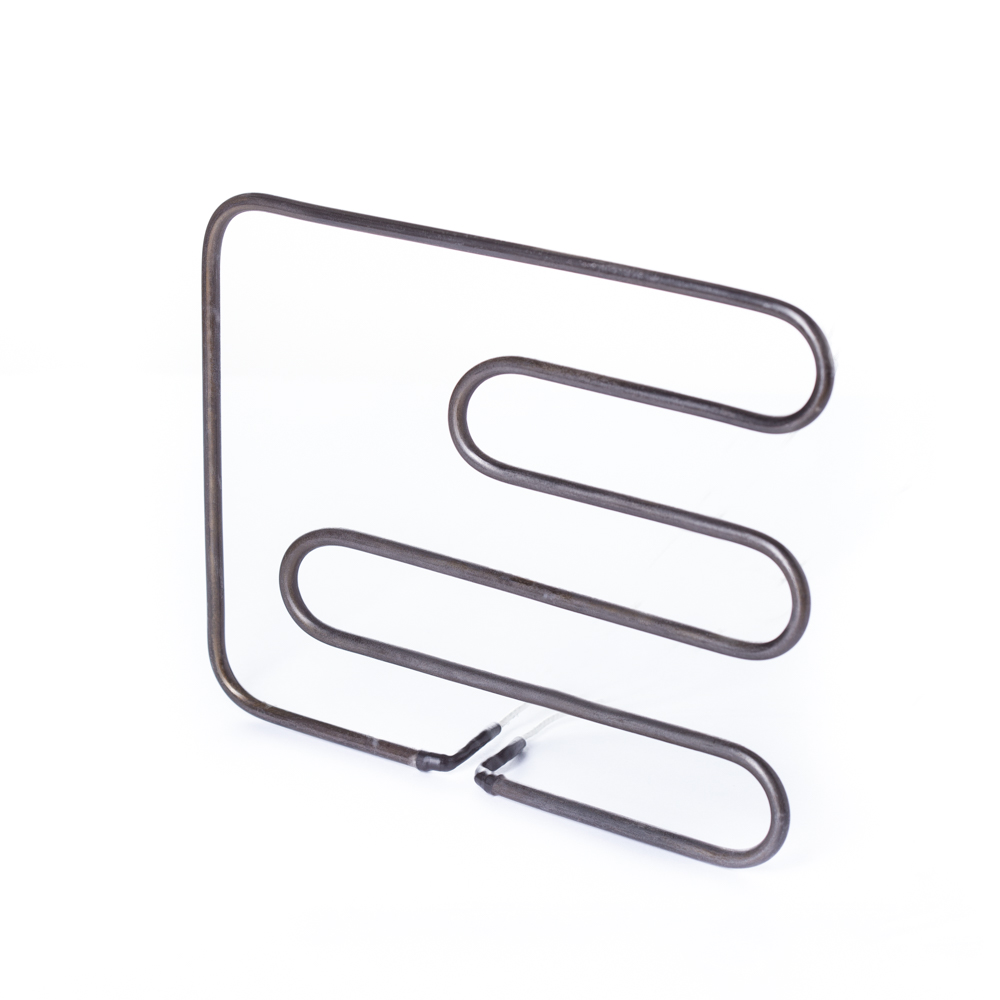

Tubular heaters
Tubular heaters are used to heat air, gases, liquids and solids. Tubular heaters are widely used in various industries. La possibilità di qualsiasi forma di caldamento, consente di essere adaptati per i requisiti specifiche, che rendono una soluzione ideale per molti sistemi di riscaldamento. They can be found in countless everyday electronic equipment, where they play the role of the main components.
They are extremely durable and often used as components of high-power heating units. They can work even in very demanding environments, resistant to chemicals, temperature and pressure.
Their construction allows for easy adjustment of length, diameter and shape to a specific application.
Basic technical parameters
Heater cross section:
AISI 304, 316L, 309, 321, Incoloy 800* t
Industries
Specification
- Plastics industry – heating injection molds, heating extruder heads, heating thermoforming plates, heating granulate tanks before processing.
- Food industry – heaters in convection and tunnel ovens, heating tanks with food liquids, heating packaging equipment, drying food products.
- Chemical industry – heating tanks and reactors, heating process pipelines, drying chemicals, heaters in evaporators.
- Pharmacology/Pharmaceutical industry – heating solution tanks, drying tablets and capsules, heaters in dosing lines, steam sterilization.
- Foundry industry – heating casting molds, heating permanent molds, drying cores, heating crucible furnaces.
- Furniture industry – heating veneer and laminate presses, heaters in wood drying equipment, maintaining adhesive temperature.
- Paper industry – heaters in paper dryers, heating calender rollers, maintaining the temperature of coating adhesives.
- Packaging industry – heating sealing jaws, heating laminating rollers, maintaining shrink film temperature.
- Footwear industry – heating vulcanization molds, drying footwear, heating adhesives in assembly processes.
- Textile industry – heaters in tumble dryers, heating heat-transfer presses, stabilizing temperature in laminating machines.
- Ceramic and glass industry – heaters in ceramic kilns, heating molds, drying components, heaters in glass tempering furnaces.
- Railway and tramway industry/Railway industry – heaters for rail switches, heating oils and operating fluids, heating brake systems in winter conditions.
- Aerospace industry – heating composite molds, maintaining temperature in bonding and curing processes, heaters in test chambers.
- Reinforcement industry – heating components in ammunition production, heating molds for metal and composite parts, drying protective coatings.
- Home Appliance Industry – heaters in ovens, washing machines, dishwashers, tumble dryers, electric kettles.
- Cosmetic industry – heating tanks with cosmetic masses, drying packaging, maintaining temperature in cream and lotion dosing lines.
- Shipbuilding and offshore industry/Shipbuilding – heating fuel tanks, heaters in seawater desalination systems, heating technical rooms.
- Paint and varnish industry – heating paint booths, drying coatings, maintaining paint and varnish temperature.
- Construction – heating bituminous masses, heating molds for concrete prefabricates, drying building materials.
- Laboratories & Research/Laboratory Industry – heaters in laboratory dryers, heating research reactors, maintaining sample temperature.
- Industrial Warehouses and Cold Stories/Warehouses and Logistics – heaters in air curtains, heating loading ramps in winter, heating evaporators in cold stores.
- Road and transport infrastructure – heating railway switches, heating bridge and pavement surfaces, anti-icing systems.
- Catering and catering equipment – heaters in ovens, fryers, bain-maries, water heaters, contact grills.
- HVAC Industry – heaters in duct heaters, air curtains, ventilation units, air-conditioning systems.
- Energy and power plants/Power industry – heating transformer oils, heaters in water preheaters at power plants, heating turbine components.
- Recycling industry (proposed) – heating in plastic processing, drying secondary raw materials, heating components in separation lines.
- Rubber Products Industry/Rubber Industry – heating vulcanization molds, maintaining temperature in rubber bonding processes, drying rubber components.
- Printing industry (proposed) – heating printing cylinders, drying inks, maintaining temperature in flexographic machines.
- Metallurgical and metalworking – heating casting molds, heating permanent molds, drying and preheating charges before processing, heaters in heat treatment furnaces, heating electroplating baths, maintaining temperature in crucible furnaces.
- Electroplating – heating electroplating baths, maintaining temperature in process tanks, heating degreasing baths, heating anodizing and nickel baths, stabilizing electrolyte temperature.
Tubular heaters for operation in air
Heaters operating in air are made of stainless steel in degrees min. AISI321. The shape of the bending depends on the needs of the customer. Thanks to the radiator made of stainless steel, the surface area and heat transfer efficiency are increased. Heaters can be mounted using stuffing boxes, heads, brackets, fixing plates, blind flanges etc.
Available variants:
- diameter of the heater Fi 8,5, radiator Fi 25
- diameter of the heater Fi 10, radiator Fi 29
- diameter of the heater Fi 13, radiator Fi 34
(drawing of a heater with a radiator)
Tubular heaters for liquid operation
Tubular heaters designed for operation in liquids are made of 316L or INCOLOY 800 stainless steel. Elaborate parameters (power, tension, bending and type of fastening) depending on the wishes of the clients. Tubular heaters are usually mounted in heads: 1”, 1 ¼”, 1 ½”, 2”, 2.5”, made of brass or stainless steel.
At the request of the customer, it is possible to create a stainless steel head with any type of thread. The heating element can be fixed in M14x1.5 or 3/8” chokes. Heaters in heads and chokes are connected by brazing (silver) or in the case of aggressive liquids — TIG welding. The current output of this type of heaters is standard (screw M5, pin, threaded terminal M4). In the case of 1 ½”, 2” and 2.5” heads, the entire connection can be covered with a protective box. On request, we produce heaters with a built-in thermostat or with the sheath itself under the temperature sensor.
(drawing of a heater with a head)
Tubular heaters for work in mold channels
A tube heater designed for injection molds can be of different shapes, so we manufacture them according to the specifications provided by the customer. A heater made in this way is doginized, and then fixed in the distributor.
Tubular heater for defrosting
Tubular heaters for defrosting cold counters have additional, hermetic insulation at the current connection of the heater to the cable. As with the other types of heaters, they are made according to the individual needs of the customer.
Wires
- Straight pin 6.3mm*
- 6.3 mm bent insert*
- Screw M5, M6*
- Threaded Clamp4*
- Rods Fi 2,5; 3,0 mm*
(drawings of current leads)
*Requires consultation with Sinkoplex technical department
A. Each heating device is deactivated and its parameters are defined
Visualization of the construction of the heater
